Gem Faceting Machine FJM-2014U

Description

Gem Faceting Machine FJM-2014U

This machine is equipped with a three-legged flat type faceting hand. The faceting hand is equipped with a 64-degree and 96-degree dual-purpose indexing wheel. The octagonal hand and the faceting hand share a lifting platform, making it easy to see stones. The faceting hand has an angle locking handwheel for easy operation.

Specifications

Main functions: Faceting and Polishing the Gemstone.

With Faceting holder, the optional angle gauge for geting the exact faceting and angle of the gem.

With shaping holder for geting the good shape of the gem.

To Faceting the gemstone with hardness up to 9.

With both Automatic and manumotive for the rotation of disc.

Faceting Hand wheels Index: 64 & 96.

With 10 pcs of dopsticks.

Motor Power:250W.

Adjustable Speed of Mainshaft: 0-3000r/min.

Suitable for Disc with Dia. of 150mm.

Input power:AC220V or AC110V(please advise which one you need while order), 50-60Hz.

Product Size : 600×300×380mm; packing size：750x380x400 mm;

With 3 pcs diamond disc ( 400#; 800#; 1200#) for Faceting & 1pcs zinc disc for polishing

With rounded tray and it’s Dia. of 160 mm;

Equipped with Fable High Quality Black Exquisite octangle Hand,both the octagonal disc and the spindle are CNC machined for high precision;a high-precision elastic chuck provides a tighter grip, suitable for mounting 5.8mm-6mm dop sticks.

The bottom of the lifting platform disc has a fine-tuning knob, which allows for fine adjustment of the disc’s height. The disc can also rotate freely in the horizontal direction, so users do not need to frequently move the lifting platform to the right to switch small angle and big angle; they only need to adjust the lifting platform up and down and rotate it to achieve gemstones polishing angle from 0 to 90 degrees.

Large circular lifting platform, with a disc diameter of 16cm. It can meet the needs of various faceting hand, such as octagonal/pentagonal/hexagonal hand, Flat placement type faceting hand, and CNC faceting hand.

The left column of the lifting platform has markings, and the right column can rotate freely, making it easy to adjust the height of the lifting platform.

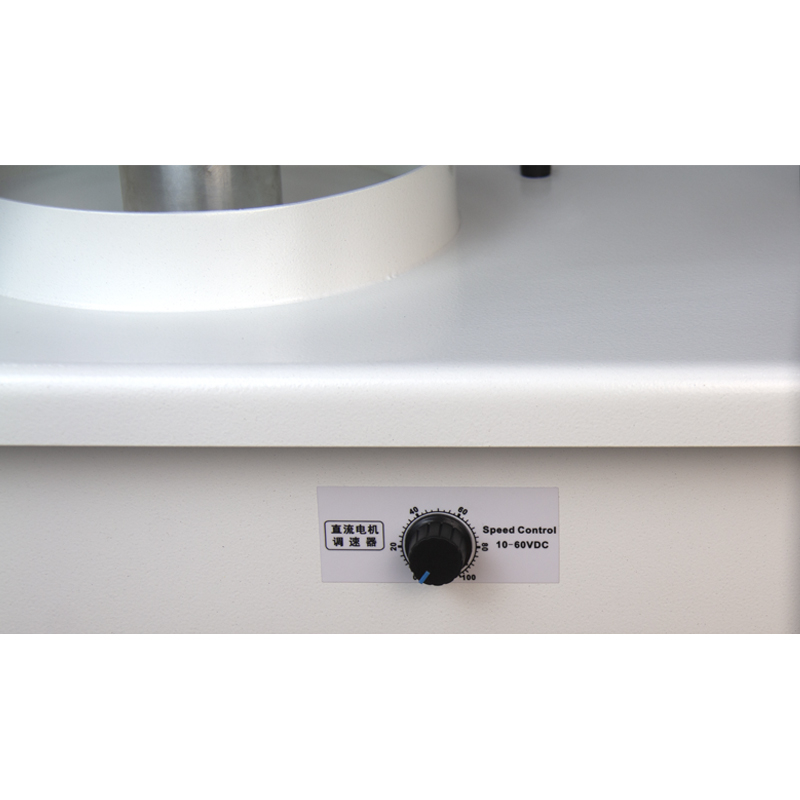

“230V” is suitable for the range of 210V to 240V.                                                                                                The rotation speed is adjustable,

“115V” is suitable for the range of 110V to 130V.                                                                                          with an adjustment range of 0~3000r/min.

The large-capacity water cup design eliminates the need for frequent                                           Polishing disc edge runout ≤ 0.03mm

refills during work. The high-quality stainless steel precision faucet allows

for precise control of the drip rate and is easy and quick to adjust.

Accessories

The machine components include a faceting hand/arm, a Fable High Quality Black Exquisite octangle Hand, an Zinc alloy polishing disc with a diameter of 150mm, 3 pcs diamond disc for Faceting polishing( 400#; 800#; 1200#), 10 dop sticks, a set of lifting table and a water cup with a tap. When connecting the accessories, be sure to tighten the screws.
