Product Detail
U2-19
Model: U2-19
Material: Metal
Weight: 2.4kg
Size: 34*19*12cm
Package: a bubble box
Term: FOB ShenZhen
Delivery: By Express
Lead: 7 days
Specification

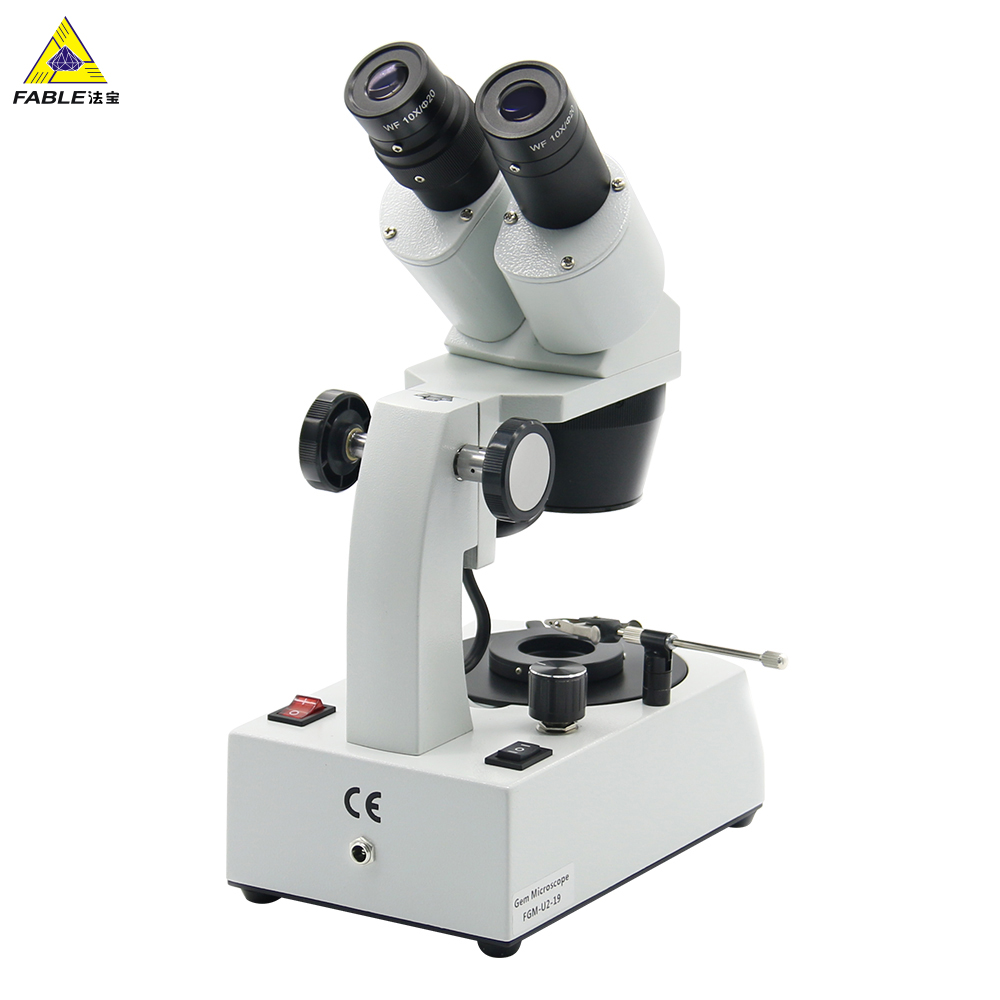

Gemological & Jewelry binocular microscope with 20-40X magnification factor

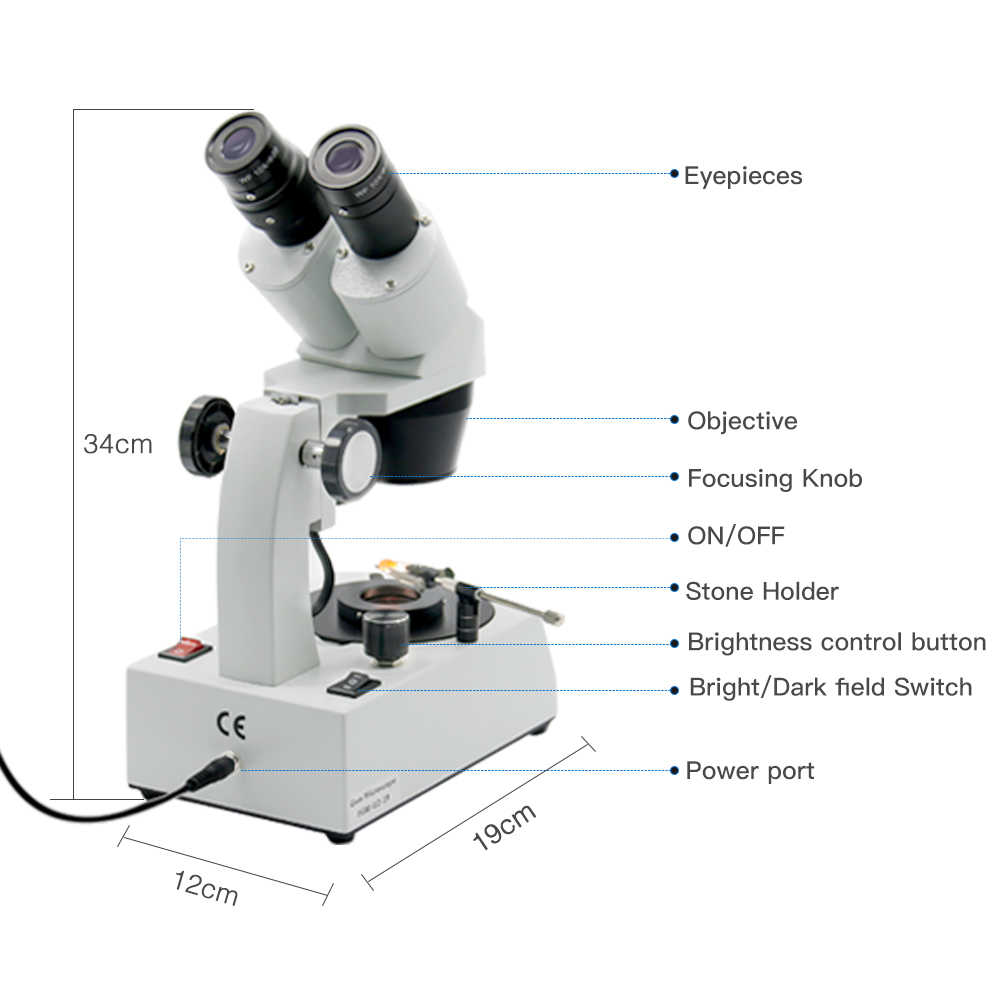

[Product Feature] - Straight arm type Gem Microscope(Generation 2nd)

1. Upright minitype base 2: with long life LED light source;

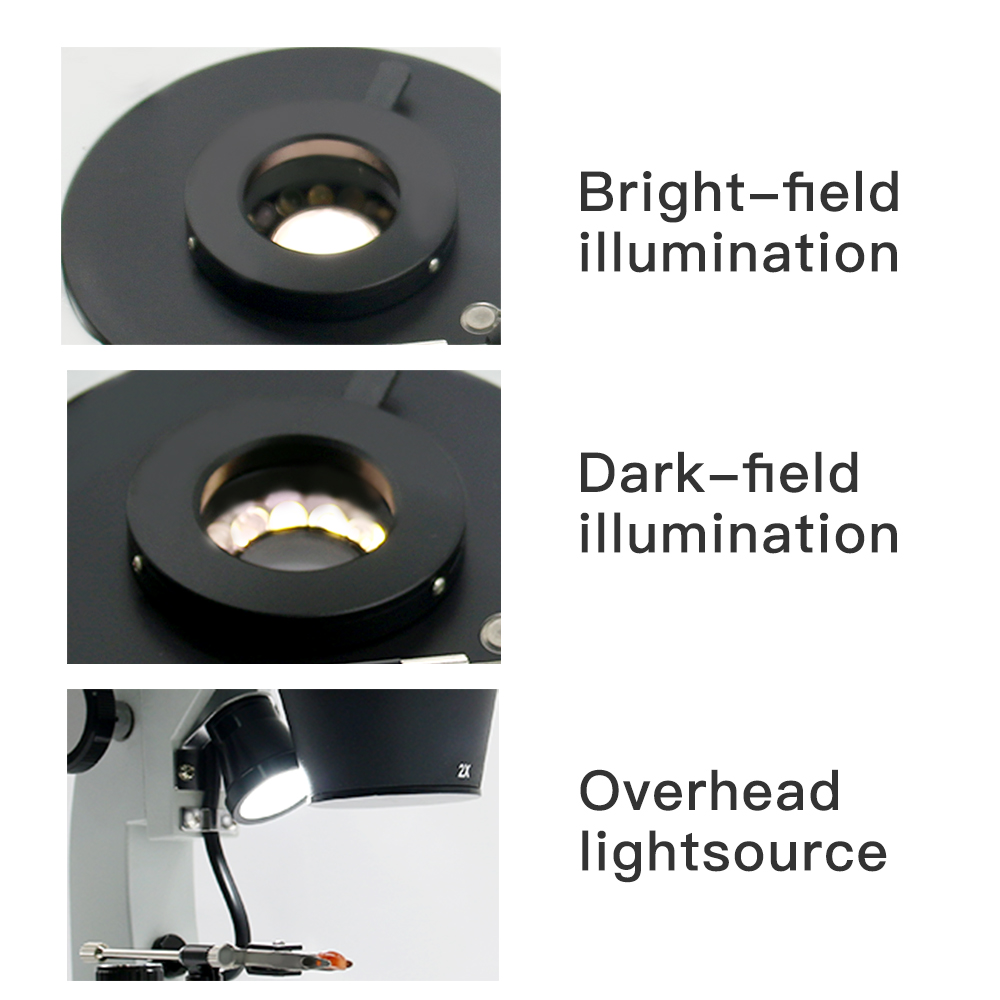

2. Supply 3 illumination systems: bright field, dark field and top light;Convenient to controlled the bright field and dark field by electronic switch;
3. Humanized design, With Gem clamp mounting hole on both right and left side;
4. Two ways power supplies: 3x AAA batteries or external DC power source;
5. World-wide voltage: 100V-240V;
6. Equip F19 microscope head: wide field of view, imaging clearly
7. 180° rotate objective lens, 20-40X, two times magnifying;
8. Working distance: 56mm;
9. Adjustable dicpter :WF10/16mm eyepiece
10.3W High brightness white LED6500±500K


[Product Application]

Gemological labs, gemology schools/institutes, gem&jewelry industrials, --etc.
